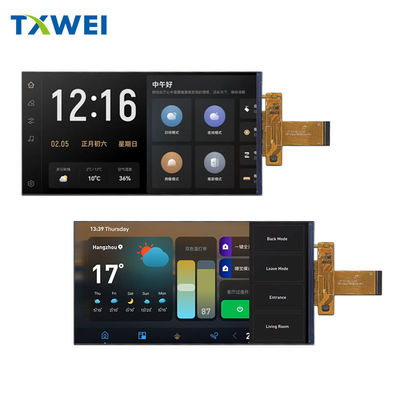

7-inch TFT LCD screen MIPI high-definition screen 720*1440 LCD display IPS smart home panel color screen

TXW700185B0 Key Parameter Overview

The diagonal of the screen is 6.9 inches, and the overall module shape is 80.21 mm wide, 162.34 mm high, and 2.22 mm thick;

The effective display area is 78.02 mm × 156.04 mm, corresponding to 720 horizontal pixels and 1440 vertical pixels.

 Each horizontal pixel is further divided into three sub pixels: red, green, and blue. Therefore, the total number of sub

pixels is 720 × 3 × 1440. The pixel spacing is 0.10836 mm × 0.10836 mm, and the pixel arrangement is a classic

RGB vertical stripe.

The LCD mode is normally black transmission type, driven by TFT active matrix; Up, down, left, and right directions can all

achieve an 85 ° viewing angle, and the contrast ratio is greater than 1000:1 at a positive viewing angle. The driver IC

adopts Sitronix GC9703C, with a 4-lane MIPI DSI interface, and supports up to 16.7 M color software color selection.

The backlight part uses 16 white LED lights with edge light structure; A single LED has a forward voltage of 22.4 V to 26.4 V

at a current of 40 mA, with a typical overall brightness of 300 cd/m ² and a minimum guaranteed brightness of 250 cd/m ².

The brightness uniformity is ≥ 75%, and the LED has a lifespan of 30000 hours (ending at 20 mA and a brightness reduction of 50%).

DC power supply is divided into two channels: VCI provides analog and DC-DC, with a voltage range of 2.8 V to 3.3 V, typically

3.3 V; IOVCC provides digital I/O, with both 1.8 V to 3.3 V available, typically 3.3 V. The module operates at temperatures

ranging from -20 ℃ to+70 ℃, with storage temperatures ranging from -30 ℃ to+80 ℃, and a maximum relative humidity of 90% RH.

The reset pin low level is effective, with a minimum pulse width of 10 µ s. After the RESET is released, it takes 15 ms to send the command.

 If reset from Sleep Out mode, the Sleep Out command cannot be sent within 120 ms. The backlight dimming pin PWM supports

0% -100% stepless brightness adjustment. The total length of FPC is 44.57 mm, the gold finger area is 14.5 mm, the spacing

between 30 pins is 0.5 mm, the end steel reinforcement thickness is 0.1 mm, and the bending radius can be repeatedly bent 10 times

 without fracture within 2 mm.

The weight of the entire machine is to be measured and announced. It is recommended that each side of the touch panel

window be 0.3 mm to 0.5 mm larger than the effective area of the module to ensure a sufficient fit margin. All materials and processes comply

with RoHS lead-free requirements.

TXW700185B0, with its 6.9-inch narrow bezel, full view angle, high brightness, wide temperature range, and MIPI high-speed interface,

has been extensively designed and imported into the following scenarios:

☛ In car intelligent cockpit: central control information screen, passenger entertainment screen, rear headrest display, 360 °

surround view terminal.
☛ Two wheel/three wheel travel: high-end electric motorcycle instrument panel, new energy scooter central control, shared

electric bicycle navigation screen.
☛ Industrial handheld: PDA data collector, barcode scanner, infrared thermal imager, industrial grade explosion-proof tablet.
☛ Medical electronics: portable ultrasound, vital sign monitors, infusion pumps, dental/ophthalmic treatment equipment

 display windows.
☛ Testing and measurement: oscilloscope, spectrum analyzer, logic analyzer, power quality monitoring console.
☛ Outdoor commercial use: interactive screen for express delivery cabinets, self-service refueling machines, scenic guide machines,

intelligent garbage sorting kiosks.
☛ Marine ship electronics: ship mounted navigation GMDSS, sonar fish detector, radar secondary display, yacht intelligent switch panel.
☛ Smart agriculture: unmanned tractor central control, precision seeder, agricultural unmanned aerial vehicle ground station, greenhouse

environmental monitoring device.
☛ Security emergency: police law enforcement equipment, fire thermal imaging helmets, mine personnel positioning terminals,

emergency communication handheld devices.
☛ Military reinforcement: individual tactical data terminal, gun aiming fire control display, battlefield medical emergency tablet,

portable unmanned aerial vehicle ground control unit.
☛ The TXW700185B0 features wide temperature range, long lifespan, high brightness, and full viewing angle, making it the preferred

 solution for engineers to upgrade their display experience by maintaining clear images even in harsh environments.
