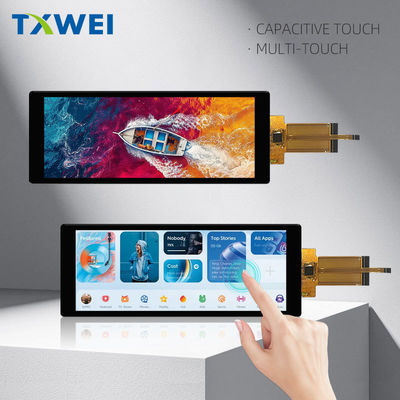

6.2-inch MIPI interface 360*960 long strip 500 brightness LCD display screen TFT display module

Small stature, big vision! TXW620002B1-DJ01 6.2-inch ultra-thin touch screen, with full field view display from -20 ℃ to 70 ℃

— 01 —

Hard core parameters that make one's heart race at a glance
• True Full Screen: 6.2 "360 x RGB x 960 resolution, 16.7M color software adjustable, color transition silky smooth to unbelievable.
• Full view ALL O'CLOCK: High contrast can be maintained at any angle, bidding farewell to the embarrassment of "gray on one side".
• 24 bit RGB interface: fast refresh, low latency, directly feeding mainstream controllers such as STM32, RK, Quanzhi, Raspberry Pi, etc.
• Equipped with GT911 touch control: G+FF structure, I ² C interface, five point touch, capable of writing, drawing, sliding and flying.
• High brightness LED backlight: typically 350 cd/m ², still transparent under outdoor sunlight, with a lifespan of ≥ 30000 hours, on standby 24/7.
• Ultra thin and light: The module thickness is only 2.3 mm, and the touch cover is also 4.63 mm, making it possible to fit even the smallest size of the shell.

— 02 —
Engineers' favorite 'invisible buff'
• Industrial grade temperature range: -20 ℃~+70 ℃ for operation, -30 ℃~+80 ℃ for storage, stable in both northern winter and southern sauna rooms.
• Hardware reset protection: RESX abnormal power failure/hot plugging does not cause screen flickering, automatically recovers when powered on, and reduces a pile of hair loss during debugging.

• Lead free and environmentally friendly process: Compliant with RoHS, exporting to the EU without pressure, providing a worry free one-stop process from sampling to mass production.
Full reliability: 80 ℃/96 h, 10 cycles of cold and hot shock, 90% RH humidity storage... all passed, safe for industrial, automotive, and medical use.

Smart Home&IoT (to look good and save power)
✅. 86 boxes of intelligent central control screen (replacing traditional switches)
✅. Refrigerator/washing machine/oven glass door transparent screen
✅. Smart speaker with screen, desktop robot
✅. Visual doorbell, peephole, gun pan tilt zoom local screen
✅. Electric bed/massage chair/treadmill control panel

Industrial&Medical (Wide Temperature+High Brightness+Long Life)

✅. Handheld scanning PDA and RFID inventory machine
✅. Industrial gateway, HMI touch integrated panel
✅. Testers, oscilloscopes, and power quality analyzers
✅. Medical portable ultrasound and blood oxygen monitor secondary screen
✅. Unmanned aerial vehicle/AGV remote control ground station

Car and outdoor (clear direct sunlight)
✅. Intelligent instrument panel for new energy two wheelers/three wheelers
✅. Rear entertainment screen and ceiling folding screen of the car
✅. On board diagnostic device OBD handheld terminal
✅. Outdoor portable energy storage power visualization panel
✅. Handheld toll collectors for high-speed ETC lanes

Supply&Support
Spot samples: shipped from Shenzhen warehouse on the same day, no waiting for sampling.
Customized services: FPC length, backlight brightness, CTP cover logo, optical full lamination, all can be negotiated.
Technical support: Provide ST7701SN initialization code, GT911 driver routine, RGB interface reference schematic, engineers answer questions online, so that you can avoid pitfalls from 0 to 1.
