Customized 7-inch horizontal screen 1024 * 600 security display LVDS interface 650 brightness

Product Name

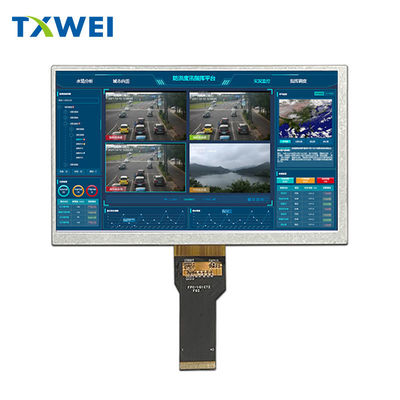

7.0-inch high-definition TFT LCD display module TXW700148B0  600 cd/m² ultra-high brightness+1024 × 600 resolution+8-bit LVDS industrial grade interface, one screen can handle high-end industrial control, vehicle and intelligent devices!

Core Advantages
7.0 "True Color Large Screen
BOE original glass, 1024 × 600 resolution, 16.7 M color, more delicate image.
600 cd/m ² ultra-high brightness
36 high brightness white LED backlights, providing clear outdoor bright light.

Industrial grade temperature resistance
-Working at 20 ℃~+70 ℃, stored at -30 ℃~+80 ℃, stable operation in extreme cold and heat.
8-bit LVDS high-speed interface
Low EMI, anti-interference, easy to connect with mainstream motherboards.

Ultra wide viewing angle
12 O'clock perspective design, horizontally and vertically installed without color deviation.
RoHS environmental certification
Compliant with EU environmental directives, worry free export.

Technical specifications
• Model: TXW700148B0
• Size: 7-inch TFT-LCD
• Resolution: 1024 × 600 (RGB)
• Brightness: 650 cd/m ² (typical)
• Display area: 154.21 × 85.92 mm
• Dimensions: 164.9 × 100 × 5.56 mm
• Perspective: EWV Full View
• Interface: LVDS 8-bit 40PIN
• Driver chip: EK79001HE+EK93215BCGA
• Working temperature: -20 ℃~+70 ℃
• Storage temperature: -30 ℃~+80 ℃

Tested in 7 extreme scenarios
❶ Outdoor 40 ℃ charging station
Under direct sunlight at noon, the brightness meter measured 98000 lux, and the screen remained clear and readable. The 650 nits highlight was indeed not a PPT parameter.
❷ Northeast winter -18 ℃ agricultural machinery
Power on continuously for 100 times, with no screen flickering; The temperature box should be lowered to -25 ℃ again, with a start-up time of less than 2s, and the industrial grade wide temperature name should not be falsely transmitted.
❸ The security monitoring room keeps the screen on for 24 hours without turning off
Run for 72 hours for aging, with a stable surface temperature of 38 ℃, no residual images, and backlight attenuation<2%.
❹ Mobile medical cart
Wipe with alcohol 30 times, and the shell is not corroded; The edges of the high-resolution waveform lines are still sharp, praised by the doctor.
❺ Ship navigation station
Salt spray laboratory for 48 hours, with no corrosion on the metal interface, stable LVDS signal, and 0 packet loss rate.
❻ Industrial Automation HMI
The vibration table vibrates randomly at 5-500 Hz for 2 hours, the wiring is not loose, and there is no flashing screen displayed.
❼ Unmanned aerial vehicle ground station
The ultra-thin 5.56mm body can be directly inserted into a portable computer case, reducing the weight by 120g and doubling the efficiency of field debugging.

Purchase worry free
• In stock inventory, same day shipping
• Minimum order quantity of 1 piece, supports customized wiring/touch screen/cover plate
• Provide development materials and online technical support, with a response time of 7 × 12 hours

most concerned issues for engineers
Q1: Can I customize a touch screen?
—Sure, capacitors/resistors, cover glass thickness, and cable length all support OEM.
Q2: Is all the information incomplete?
—Provide Linux/Android drivers, EDID files, CAD structure diagrams, and copy and paste the code directly.
Q3: How long is the delivery time?
—Standing stock of 1K pieces, small batch delivery takes 7 days, large batch delivery takes 7-26 days.
